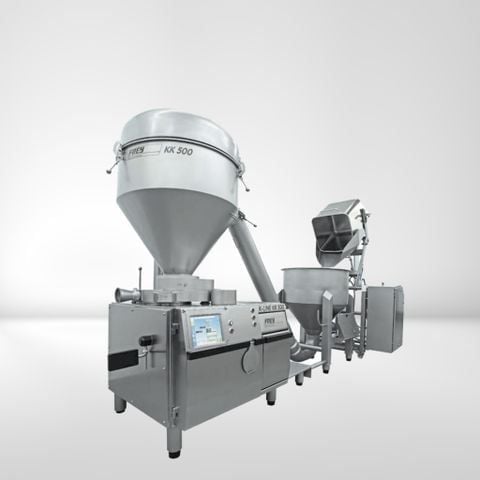

PISTON KK500 DV Crusher

Vendor: Frey - Germany Product code: Updating

Fully electronic continuous piston filling machine for STRAIGHT FILLING and PORTIONING with FREY TOP LINE drive

Additional agitator drive
Filling capacity up to approx. 8,500 kg/pc
Machine housing (inside and outside) and feed hopper
completely made of stainless steel
Approx. 500 l filling hopper with automatic suction loading via negative pressure
200 mm suction tube with adjustable air valve
Manual hinged opening mechanism
Vacuum valve block for external vacuum system for DV.
Required pneumatic connection DIN ISO 8573-1 class 2
Air consumption 6 bar/10 ltr./min.
Measurement and monitoring of filling level.
Double-sided feeder
Filling pressure approx. 25 bar
with electrically operated interlock
Table of contents and display of product name in the program
6 rotating filling cylinders Max. volume 500 cm³
Portioning area 50 - 100,000 g (50-999 g in 0.1 g increments)
Max. portioning speed 350 portions/min.
Infinitely selectable portion speed and pause time
Flow rate measurement, piece counter, piece number stop
Mass siphoning and portion addition 1. Portion
Error display, memory for 200 filling programs
Electronic pulse control for clippers
Integrated, digitally controlled vacuum system with level monitoring in the vacuum tank
Vacuum pump 40 m³
Total connected load: max. 10.9 KW
Three-phase current 400 V, 50/60 Hz
Including standard accessories
Industrial PC control TC 733
12” TFT colour display (800x600)
Touch control
Motion Control
Intuitive control
CAN Bus for high-speed communication
Including adapters, Ethernet interface,
USB interface
