at one glance

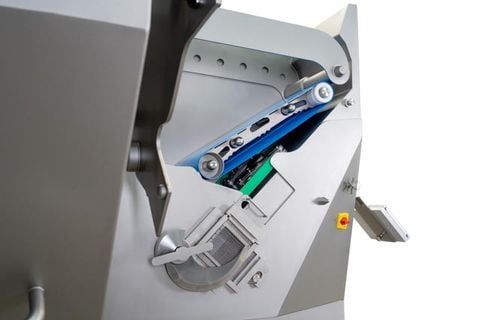

- Feed system

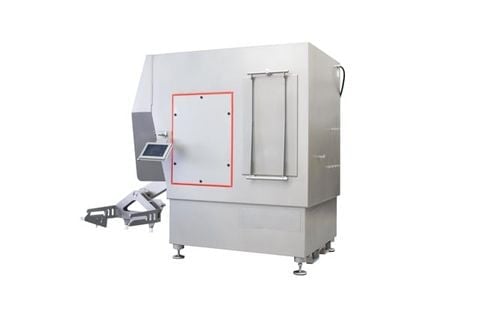

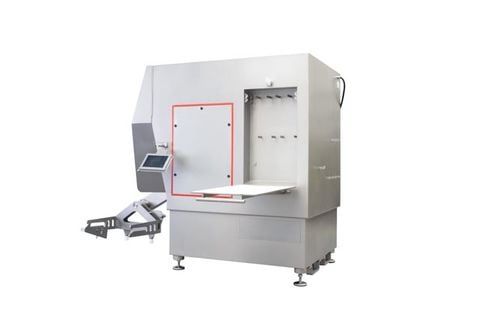

- Tablet control
- Pre-filling funnel with chamber loading system
- Serrated knives
- Angled shaft
- Lateral pre-compacting
- Stabilisers for sliced goods
- Multiple-knife-function
- Multiplex - grid on roller bearings
- Pressure - sensitive pre-compacting
- Stepless feed adjustment

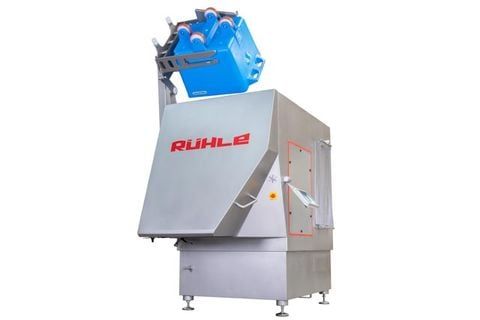

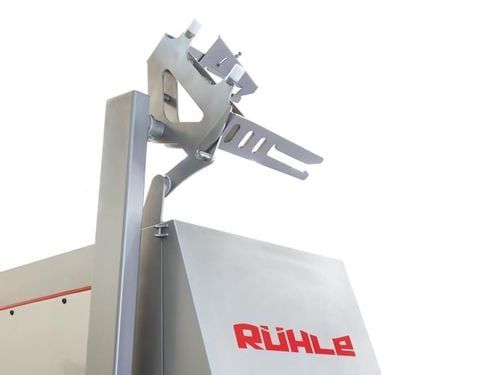

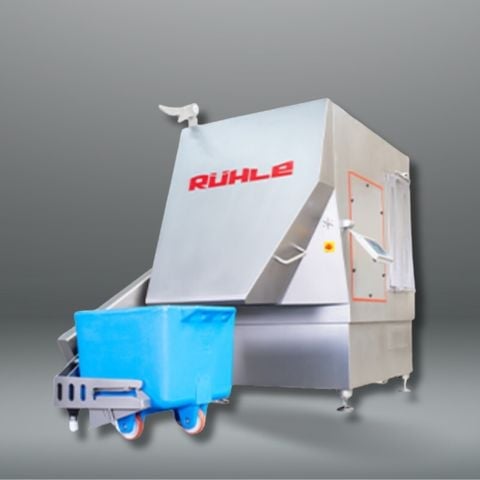

- Lift for Eurobins

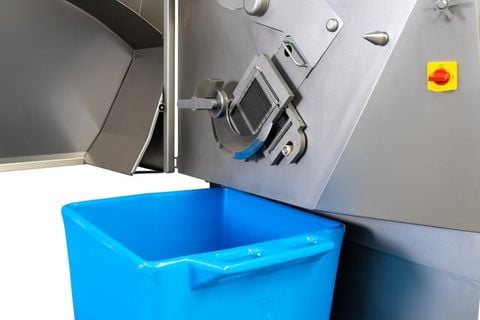

- Off cut processing system
- Tool magazine
Technical specifications
| Machine length | 2.800 mm - 3.440 mm |
| Machine width | 1.494 mm - 1.600 mm |
| Machine height | 2.115 mm - 3.145 mm |
| Machine weight | 2.000 kg |
| Connected load | 400 V, 14 kW, 32 A |
| Performance | 3.500 kg/h |
| Length of shaft | 530 mm |
| Width of shaft | 120 mm |
| Height of shaft | 120 mm |
| Sections | 200 pulsating / 320 continuously |
| Section length | 0.5 mm - 32 mm |
| Cutting temperature | -5°C bis +80°C |
| Standard grid sizes | 5, 10, 20, 60 / 6, 12, 24, 60 / 7, 15, 30, 60 |
