at one glance

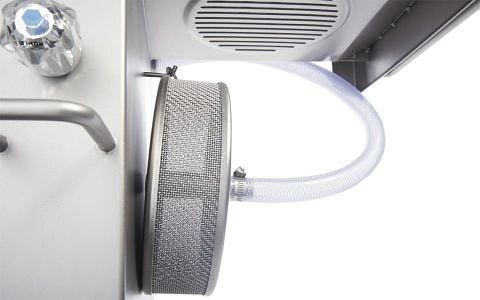

- Stainless steel XXL impeller pump

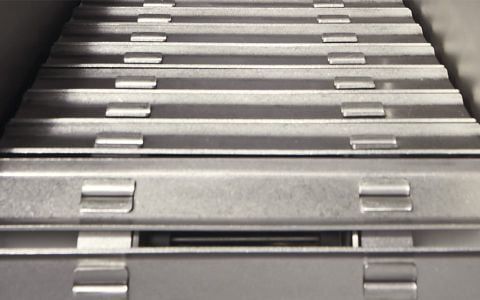

- Stainless steel belt with grip ridges
- Welded machine construction
- Fold-away workspace
- Automatic belt fastening

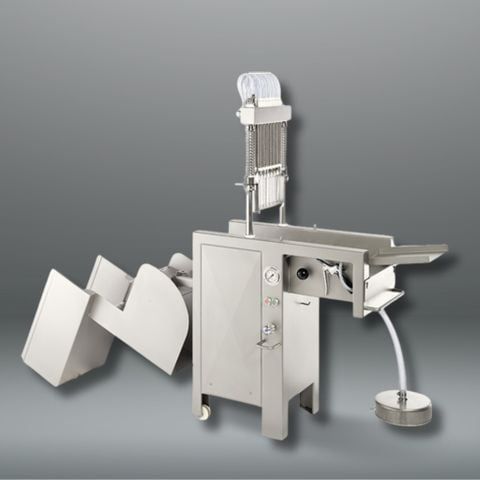

Technical specifications
| Machine length | 1.270 - 2.250 mm |
| Machine width | 500 mm |
| Machine height | 1.586 mm |
| Machine weight | 150 kg |
| Connected load | 400 V, 1.8 kW, 16 A |
| Belt advance feed | 25 mm/step |
| Belt width | 270 mm |

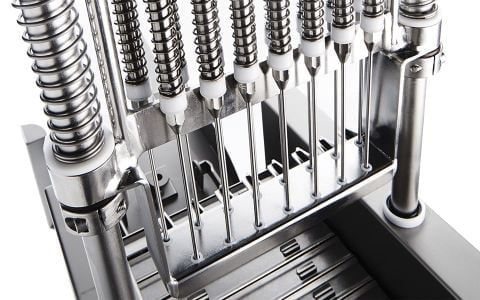

| Rows of needles | 2 |
| Feed inlet height | 180 mm |
| Injection volume | 5 - 40 % |
| Injections | 35 per minute |
| Pressure | 0.5 - 4.3 bar |
| Performance | 1.000 kg/h |
