at one glance

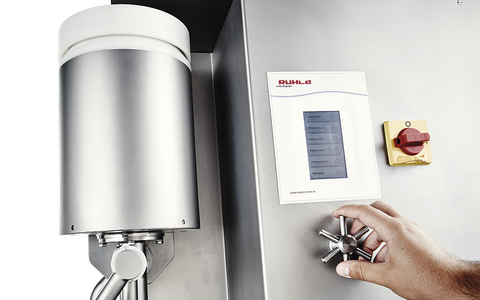

- Touch PC
- Variable operating speeds

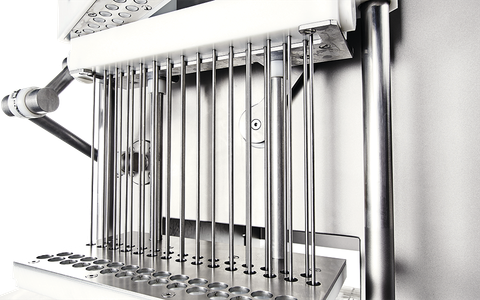

- Single - needle control

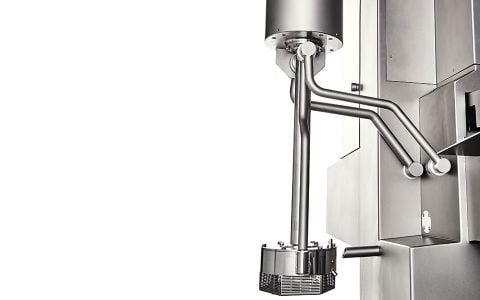

- Stainless steel immersion / rotary pump
- Softer

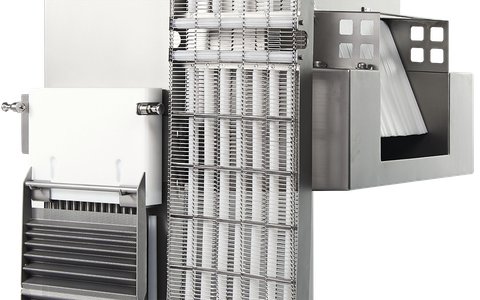

- Stainless steel belt
- Welded machine construction
- Standard trolley clearance
- Fold-away workspace
Technical specifications
| Machine length | 1.228 - 2.072 mm |
| Machine width | 911 mm |
| Machine height | 1.890 mm |
| Machine weight | 440 kg |
| Performance | 2.000 kg/h |
| Injections | 24/48 per minute |
| Belt width | 360 mm |
| Rows of needles | 2 |
| Feed inlet height | 280 mm |
| Injection volume | 3 - 80 % |
| Pressure | 0.3 - 4.2 bar |
| Connected load | 400 V, 6.1 kW, 16 A |
| Belt advance feed | 20/30/40 mm |
