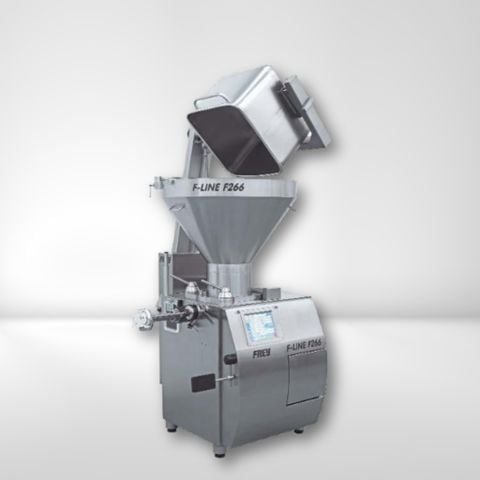

Fully electronic continuous vacuum filling machine for STRAIGHT FILLING, PORTIONING and TWISTING with rotary motor and Top Line motor.

The machine is equipped with an agitator drive.

• Filling capacity up to approx. 11,000 kg/pc
• Machine housing (inside and outside) and feed hopper made entirely of stainless steel
• Filling hopper approx. 300 litres
• Filling pressure up to approx. 35 bar max
• Integrated vacuum system and water separator
• Electrical interlock operation
• Total connected load max. 16.5 kW
• Three-phase current 400 volts, 50 Hz
• Including standard accessories
• Control FREY Touch Control TC 733
• Control Industrial PC
• 12-inch TFT colour display (800 x 600 pixels)
• Intuitive operation by touching the display (touch control)
• Motion Control
• Intuitive operation
• CAN Bus for high-speed communication with adapters
• Ethernet interface
• USB interface
• Table of contents and display of product name in the program
• Portioning area 5 - 100,000 g (5 - 999 g in 0.1 g steps)
• Max. portioning speed 1120 portions/min.
• Continuously selectable portion speed and pause time
• Flow rate measurement, piece counter, piece number stop
• Mass siphoning and portion addition 1. Portion
• Error display
• Memory for 200 filling programs, including sausage programs
• Electronic pulse control for clipper
• with integrated vacuum system and water separator
• digitally controlled vacuum system

21 m³ vacuum pump
The F-LINE F266 SA type has a high-speed servo twister.
This guarantees maximum twisting precision and speed.
The servo twister serves as a drive for the optionally available WK98 mincer cutting system.

At the factory, the machine can also be equipped with a hydraulic lift for standard 200-litre loading wagons.
