Founded in 1946 in Baden-Württemberg in South-West Germany, Frey is a manufacturer of high-quality stuffing machines for the meat processing industry and the food industry. With the challenge of continuous development and innovation to create products that bring maximum benefits to customers, over 70 years, Frey has supplied the world to over 60 countries, 70% of products for export.
Frey continuously researches and improves to create product lines such as piston stuffing machines, vacuum stuffing machines, sausage lines and convenient food lines, according to customer needs and bringing optimal value.

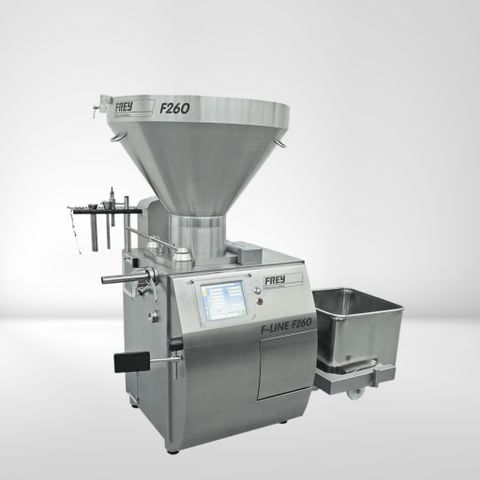

The machine is equipped with an agitator drive.
- Filling capacity up to approx. 7,300 kg/unit.
- Case (inside and outside) and feeding hopper made entirely of stainless steel.
- Filling hopper approx. 300 liters.
- Filling pressure up to approx. 45 bar max.
- Integrated vacuum system and water separator.
- Electrically interlocked operation.
- Total connection load max. 18.3 kW.
- Three-phase current 400 volts, 50 Hz.
- Controls FREY TC 733 touch control.
- 12 inch TFT color display (800 x 600 pixels).
- Intuitive operation by touching the screen (touch control).
- Motion control.
- Intuitive operation.
- CAN Bus for high-speed communication with adapters.
- Ethernet interface.
- USB interface.
- Table of contents and product name display in the program.
- Portioning area 5 - 100,000 g (5 - 999 g in 0.1 g steps).
- Maximum portioning speed 1120 portions/min.
- Continuously selectable portioning speed and pause time.
- Flow measurement, portion counter, portion stop.
- Weight suction and portion addition. Portion error display.
- Memory for 200 filling programs, including sausage making program.
- Electronic pulse control for cutter.
- with integrated vacuum system and water separator.
- Digitally controlled vacuum system.
- 21 m³ vacuum pump.
The F-LINE F260 SA type has a high-speed servo twister.
This guarantees maximum twisting precision and speed.
The servo twister serves as a drive for the optionally available WK98 mincer cutting system.
Description | Ref art. | Hopper | STRAIGHT FILLING | PORTIONING | TWISTING |
F-LINE F260 P | 77 000 001.00 | 300 l | x | x | |
F-LINE F260 A | 77 000 000.00 | 300 l | x | x | x |
F-LINE F260 SA | 77 000 004.00 | 300 l | x | x | x |
