Founded in 1946 in Baden-Württemberg in South-West Germany, Frey is a manufacturer of high-quality stuffing machines for the meat processing industry and the food industry. With the challenge of continuous development and innovation to create products that bring maximum benefits to customers, over 70 years, Frey has supplied the world to over 60 countries, 70% of products for export.
Frey continuously researches and improves to create product lines such as piston stuffing machines, vacuum stuffing machines, sausage lines and convenient food lines, according to customer needs and bringing optimal value.

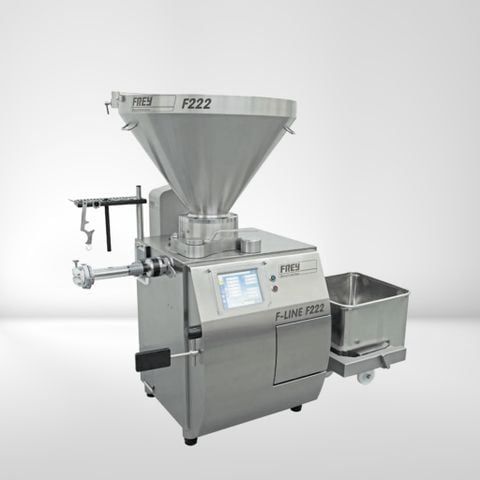

Fully electronic continuous vacuum filling machine for STRAIGHT FILLING, PORTIONING and TWISTING with rotary motor and Top Line motor.
The machine is equipped with an agitator drive.
- Filling capacity up to approx. 3,600 kg/pc
- Machine housing (inside and outside) and feed hopper made entirely of stainless steel
- Filling hopper approx. 300 litres
- Filling pressure up to approx. 72 bar max
- Integrated vacuum system and water separator
- Electrical interlock operation
- Total connected load max. 18.3 kW
- Three-phase current 400 volts, 50 Hz
- Including standard accessories
- Control FREY Touch Control TC 733
- Control Industrial PC
- 12-inch TFT colour display (800 x 600 pixels)
- Intuitive operation by touching the display (touch control)
- Motion Control
- Intuitive operation
- CAN Bus for high-speed communication with adapters
- Ethernet interface
- USB interface
- Table of contents and display of product name in the program
- Portioning area 5 - 100,000 g (5 - 999 g in 0.1 g steps)
- Max. portioning speed 1000 portions/min.
- Continuously selectable portion speed and pause time
- Flow rate measurement, piece counter, piece number stop
- Mass siphoning and portion addition 1. Portion
- Error display
- Memory for 200 filling programs, including sausage programs
- Electronic pulse control for clipper
- with integrated vacuum system and water separator
- digitally controlled vacuum system
- 21 m³ vacuum pump
The F-LINE F223 SA type has a high-speed servo twister.
This guarantees maximum twisting precision and speed.
The servo twister serves as a drive for the optionally available WK98 mincer cutting system.
The F-LINE F223 WK type has a drive for the WK132 (7.1 kW) or WK98 filling mincer. Twisting is only possible with our BAS or KAS rotating system.
| la la la description | Ref art. | Hopper | STRAIGHT FILLING | PORTIONING | TWISTING |
| F-LINE F223 P | 76 000 012.00 | 300 l | x | x | |
| F-LINE F223 A | 76 000 013.00 | 300 l | x | x | x |
| F-LINE F223 SA | 76 000 015.00 | 300 l | x | x | x |
| Type F-LINE F223 WK | 76 000 017.00 | 300 l | x | x |
At the factory, the machine can also be equipped with a hydraulic lift for standard 200-litre loading wagons.
| 450 Lift, Right Drawer, 200 Liter Trolley | Ref. art. 77 500 000.10 |
| Optional: 450 lift, operator side drawer, 200 litre trolley | Ref. art. 77 510 000.10 |
