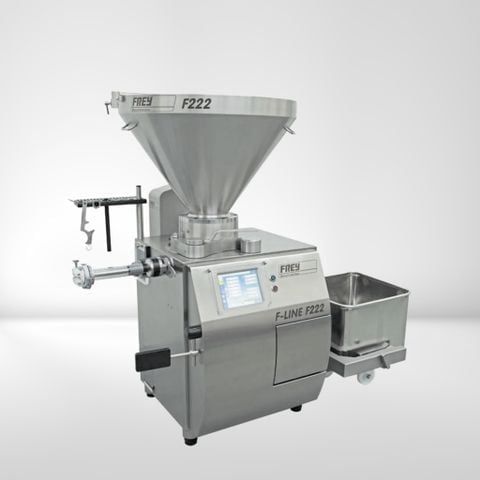

Fully electronic continuous vacuum filling machine for STRAIGHT FILLING, PORTIONING and TWISTING with rotary motor and Top Line motor.
The machine is equipped with an agitator drive.
- Filling capacity up to approx. 6,200 kg/pc
- Machine housing (inside and outside) and feed hopper made entirely of stainless steel
- Filling hopper approx. 300 litres
- Optional: Divisible filling hopper approx. 40/300 litres possible
- Filling pressure up to approx. 50 bar max
- Integrated vacuum system and water separator
- Electrical interlock operation
- Total connected load max. 18.3 kW
- Three-phase current 400 volts, 50 Hz
- Including standard accessories
- Control FREY Touch Control TC 733
- Control Industrial PC
- 12-inch TFT colour display (800 x 600 pixels)
- Intuitive operation by touching the display (touch control)
- Motion Control
- Intuitive operation
- CAN Bus for high-speed communication with adapters
- Ethernet interface
- USB interface
- Table of contents and display of product name in the program
- Portioning area 5 - 100,000 g (5 - 999 g in 0.1 g steps)
- Max. portioning speed 1000 portions/min.
- Continuously selectable portion speed and pause time
- Flow rate measurement, piece counter, piece number stop
- Mass siphoning and portion addition 1. Portion
- Error display
- Memory for 200 filling programs, including sausage programs
- Electronic pulse control for clippers
- with integrated vacuum system and water separator
- digitally controlled vacuum system
- 21 m³ vacuum pump
The F-LINE F222 SA type has a high-speed servo twister.
This guarantees maximum twisting precision and speed.
The servo twister serves as a drive for the optionally available WK98 mincer cutting system.
The F-LINE F222 WK type has a drive for the WK132 (7.1 kW) or WK98 filling mincer. Twisting is only possible with our BAS or KAS rotating system.
la la la description | Ref. art. | Hopper | STRAIGHT FILLING | PORTIONING | TWISTING |
F-LINE F222 P | 76 000 002.00 | 300 l | x | x | |
F-LINE F222 A | 76 000 003.00 | 300 l | x | x | x |
F-LINE F222 SA | 76 000 005.00 | 300 l | x | x | x |
Type F-LINE F222 WK | 76 000 007.00 | 300 l | x | x | |
At the factory, the machine can also be equipped with a hydraulic lift for standard 200-litre loading wagons.
450 Lift, Right Drawer, 200 Liter Trolley | Ref. art. 77 500 000.10 |
Optional: 450 lift, operator side drawer, 200 litre trolley | Ref. art. 77 510 000.10 |
