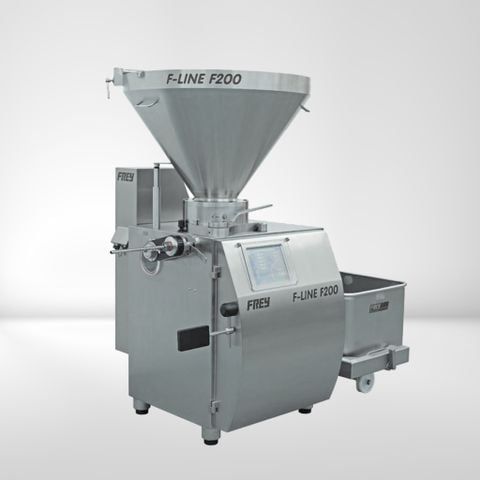

Fully electronic continuous vacuum filling machine for STRAIGHT FILLING, PORTIONING and TWISTING with rotary motor ADG04 and Top Line motor.

• Filling capacity up to approx. 4,200 kg/pc
• Machine housing and feed hopper made entirely of stainless steel
• Filling hopper approx. 300 litres
• Optional: Divisible filling hopper approx. 40/300 litres possible
• Filling pressure up to approx. 40 bar max
• digitally controlled vacuum system
• Electrically interlocked operation
• Vacuum pump 21 m³/h
• Total connected load 12.4 kW
• Three-phase current 400 volts, 50 Hz
• with standard accessories and accessory holder
• Control FREY Touch Control TC 733
• Industrial PC control
• 12-inch TFT colour display, resolution 800 x 600 pixels
• Screenshot 247 x 185 mm
• intuitive operation via robust touch foil on the display (touch)
• Ethernet interface, enables remote control and remote maintenance
• USB interface for easy data transfer
• CAN Bus for high-speed communication with adapters
• Table of contents and product name display in the program
• Portioning range 5 - 100,000 g (5 - 999 g in 0.1 g steps)
• Speed ​​and portion pause time continuously selectable
• Flow rate measurement, piece counter, piece number stop
• Mass siphoning and portion addition 1. Portion
• Error display
• Memory for 200 filling programs, including sausage programs
• Electronic pulse control for clippers
• Adapter control
• Multilingual

The F-LINE F200 SA type has a high-speed servo twister.
This guarantees maximum twisting precision and speed.
The servo twister serves as a drive for the optionally available WK98 mincer cutting system.

At the factory, the machine can also be equipped with a hydraulic lift for standard 200-litre loading wagons.
