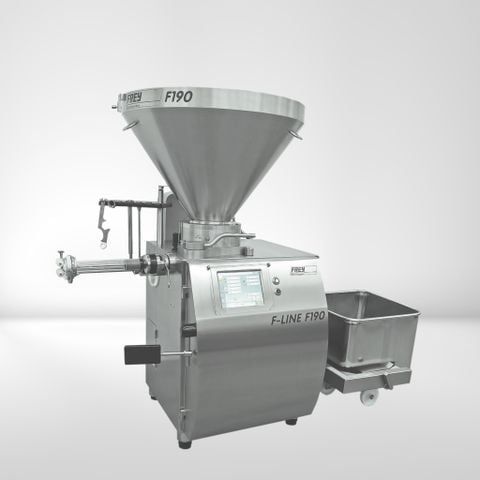

Fully electronic continuous vacuum filling machine for STRAIGHT FILLING, PORTIONING and TWISTING with rotary motor ADG04 and Top Line motor.- Filling capacity up to approx. 3,000 kg/pc
- Machine housing and feed hopper made entirely of stainless steel
- Filling hopper approx. 300 litres
- Optional: Divisible filling hopper approx. 40/300 litres possible
- Filling pressure up to approx. 55 bar max
- digitally controlled vacuum system
- Electrically interlocked operation
- Vacuum pump 21 m³/h
- Total connected load 10.5 kW
- Three-phase current 400 volts, 50 Hz
- with standard accessories and accessory holder
- Control FREY Touch Control TC 733
- Industrial PC control
- 12-inch TFT colour display, resolution 800 x 600 pixels
- Screenshot 247 x 185 mm
- intuitive operation via robust touch foil on the display (touch)
- Ethernet interface, enables remote control and remote maintenance
- USB interface for easy data transfer
- CAN Bus for high-speed communication with adapters
- Table of contents and product name display in the program
- Portioning range 5 - 100,000 g (5 - 999 g in 0.1 g steps)
- Speed and portion pause time continuously selectable
- Flow rate measurement, piece counter, piece number stop
- Mass siphoning and portion addition 1. Portion
- Error display
- Memory for 200 filling programs, including sausage programs
- Electronic pulse control for clippers
- Adapter control
- Multilingual
The F-LINE F193 SA type has a high-speed servo twister.
This guarantees maximum twisting precision and speed.
The servo twister serves as a drive for the optionally available WK98 mincer cutting system.
| la la la description | Ref. art. | Hopper | STRAIGHT FILLING | PORTIONING | TWISTING |
| F-LINE F193 P | 74 000 091.00P | 300 l | x | x | |
| F-LINE F193 A | | 300 l | x | x | x |
| F-LINE F193 SA | 74 000 092.00P | 300 l | x | x | x |
At the factory, the machine can also be equipped with a hydraulic lift for standard 200-litre loading wagons.
| 450 lift, right drawer, 200 litre trolley | Ref. art. 77 500 000.10 |
| Optional: 450 lift, operator side drawer, 200 litre trolley | Ref. art. 77 510 000.10 |
